Parameters:

Brief introduction:

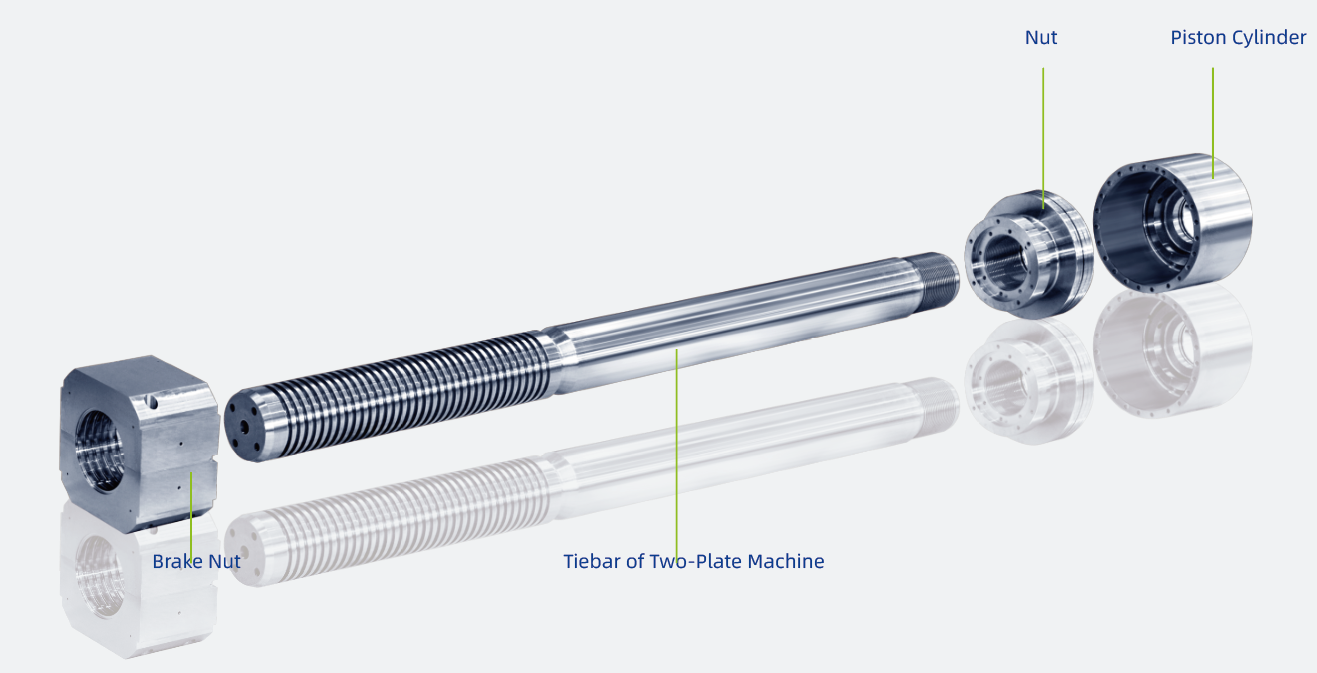

Tiebar of two-platen injection moulding machine

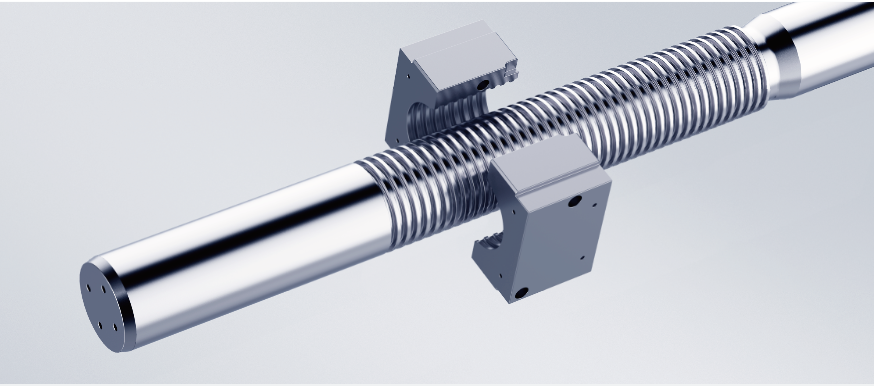

It is mainly used for medium and large tonnage plastic injection moulding machines over 500T, which adjusts the platen in-between

distance through the ring groove


Basic parameters:

Surface processing technology: nitriding, post-oxidation treatment, Chrome plating

Gas nitriding process: nitriding depth: more than 0.2mm, surface hardness: HV650~HV750

Chrome plating process: thickness of the plating layer: 0.02MM~0.08MM, hardness: above HV650

Processing dimensions: outer diameter: 150mm~600mm, length: 2500mm~10000mm

Surface finish Ra        : Ra≤0.4


Scope of application:

Composition and process:
